Bitaxe Quiet Cool – Silent Strength for Serious Miners (balanced, professional)

A complete breakdown of real-world performance, thermal benchmarks, and acoustic testing for the Bitaxe Quiet Cool enclosure.

🌀 Bitaxe Quiet Cool – High Performance. Whisper Quiet.

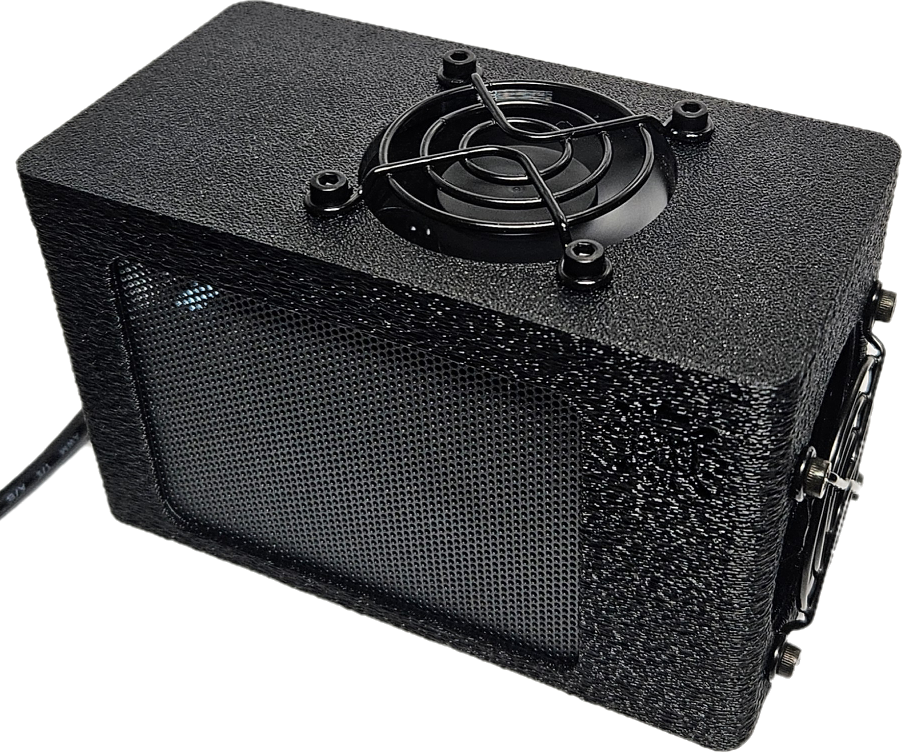

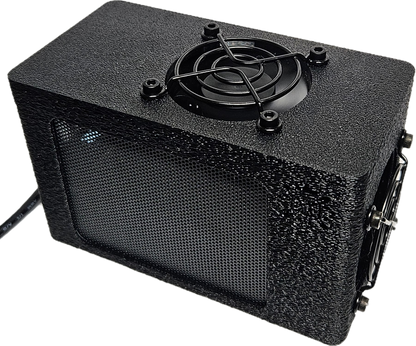

The Bitaxe Quiet Cool is our next-gen enclosure kit designed for silent, efficient solo mining. Engineered for noise-sensitive environments, it replaces the stock fan with dual low-noise PWM fans for maximum cooling with minimal sound. Compatible with all Bitaxe Gamma boards, it assembles easily and fits seamlessly on any desk or shelf.

Key Features:

• 🔇 Silent Operation – Runs at a fraction of the noise compared to stock fans

• ❄️ Enhanced Cooling – High-airflow design
• 🛠️ Stock-Compatible – No soldering or mods needed
• 🧠 Beginner-Friendly – Clear assembly guide, plug-and-play setup

• 🪶 Compact & Sleek – Clean, minimal footprint



Perfect for hobbyists, home miners, and enthusiasts who value efficiency without the roar.

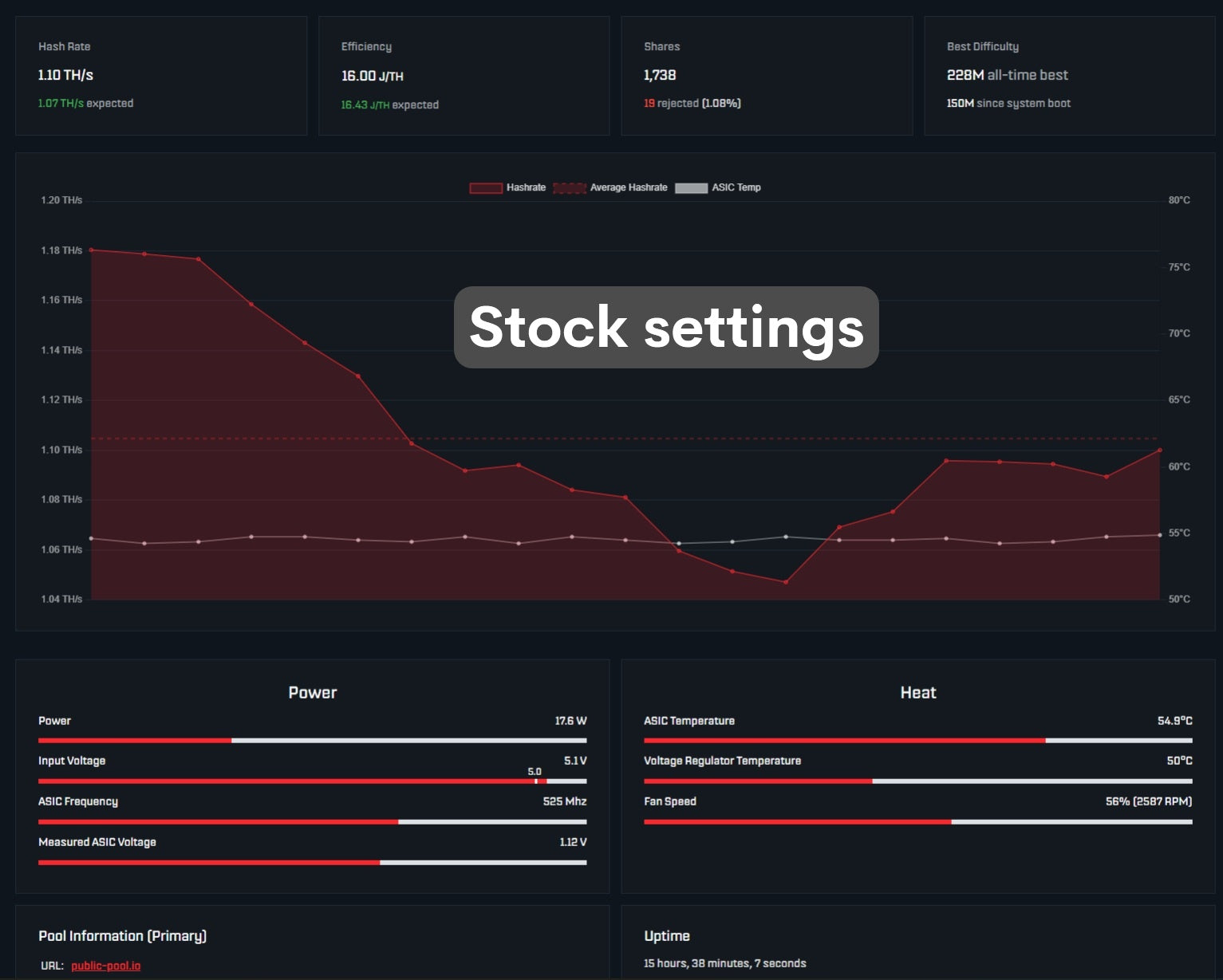

📊 Performance Specs (Stock Bitaxe Gamma Settings)

• Average ASIC Temperature: 55 °C

• Average VRM Temperature: 50 °C

• Fan Speed: Dual PWM fans running at ~2,600 RPM

• Ambient Temperature: 23.3 °C

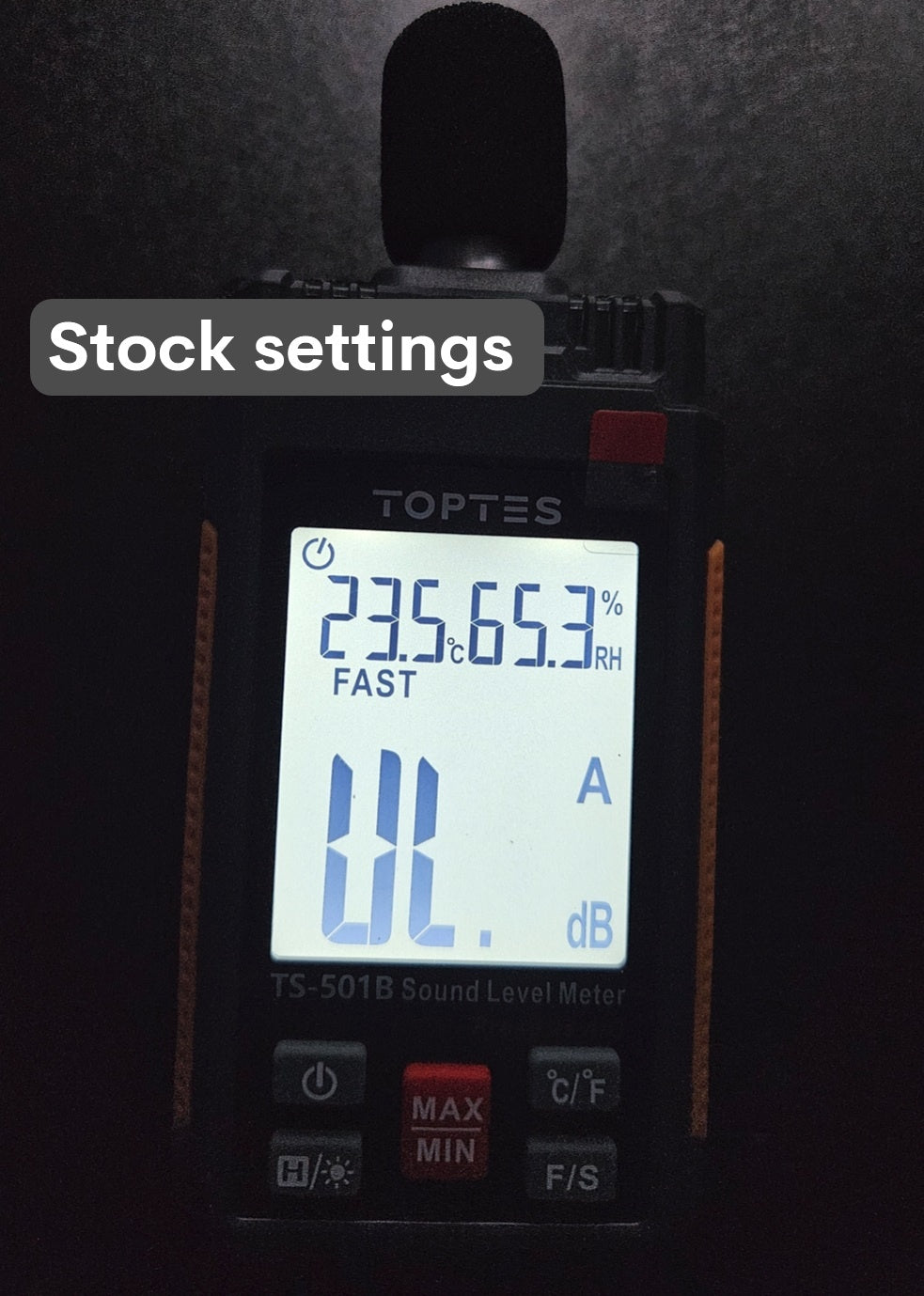

• Noise Level:


• Measured with TopTes TS-501B Decibel Meter

• Result: Sound was undetectable (<30 dB) at 1-meter distance

• ⚙️ Meter Specs:
  • Measurement Range: 30–130 dB
  • Frequency Range: 30 Hz–8,000 Hz
  • Weighting Modes: dBA / dBC
  • Accuracy: ±1.5 dB
  • Resolution: 0.1 dB
  • 2.25-inch backlit LCD display


• Compatibility: Fully compatible with the Bitaxe Gamma

Testing Conditions: These results were recorded in a real-world setup—placed on a desk with surrounding objects that may restrict airflow. Despite non-ideal conditions, thermal performance remained stable and noise output was imperceptible.

Noise Comparison:

• 📈 Stock Bitaxe fan at 100%: ~55 dB

• 🌀 Bitaxe Quiet Cool: <30 dB (undetectable).

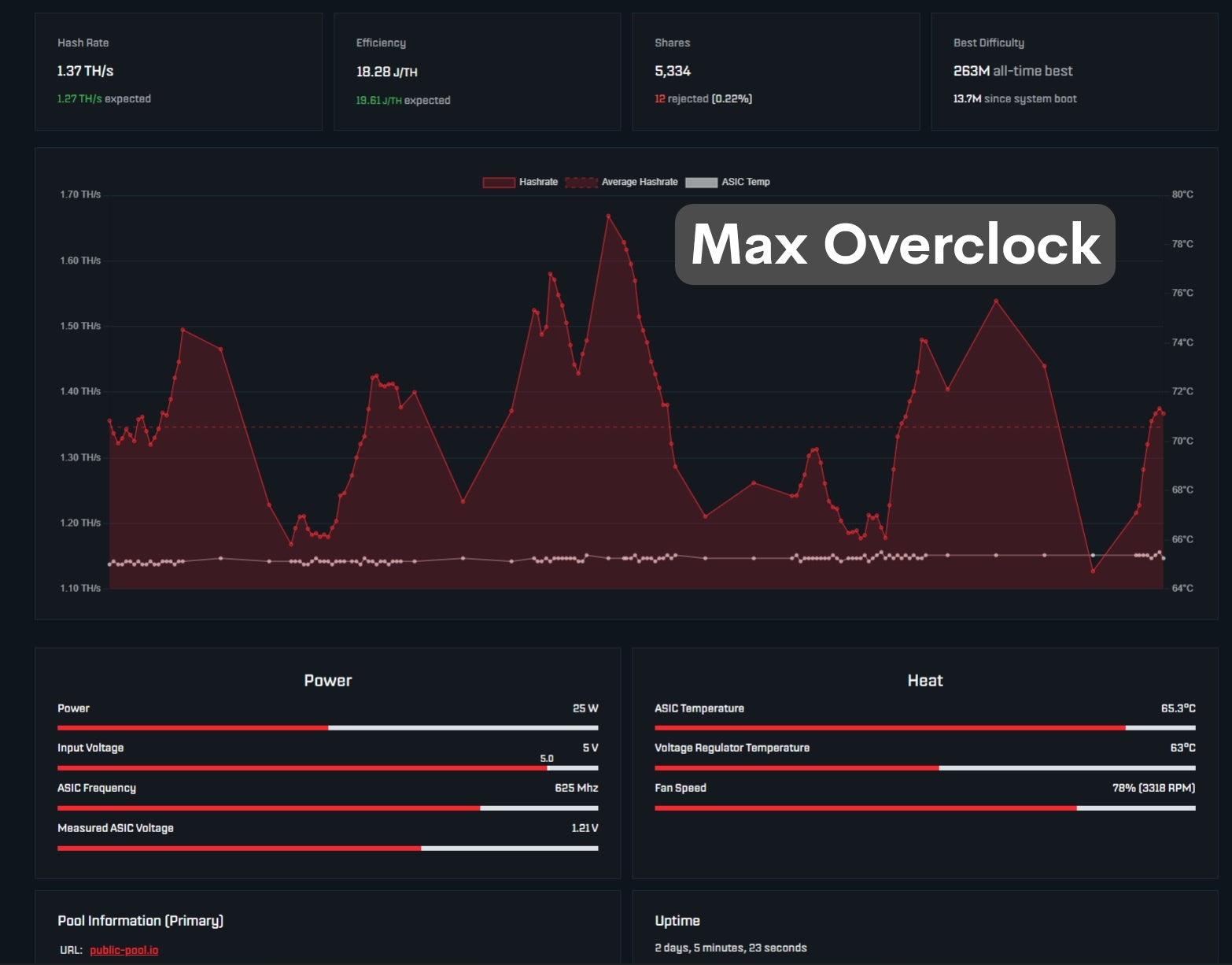

🔥 Performance Under Load – 48h Stress Test (Max Overclock: 625 MHz @ 1.25 V — stable, cool, and quiet with our case)

To test extreme conditions, we ran the Bitaxe Quiet Cool using maximum overclock settings for 48 hours in a real-world desktop setup (non-ideal airflow, nearby objects).

Results:

• Average ASIC Temperature: 65 °C

• Average VRM Temperature: 62 °C

• Fan Speed: Dual PWM fans at max ~3,300 RPM

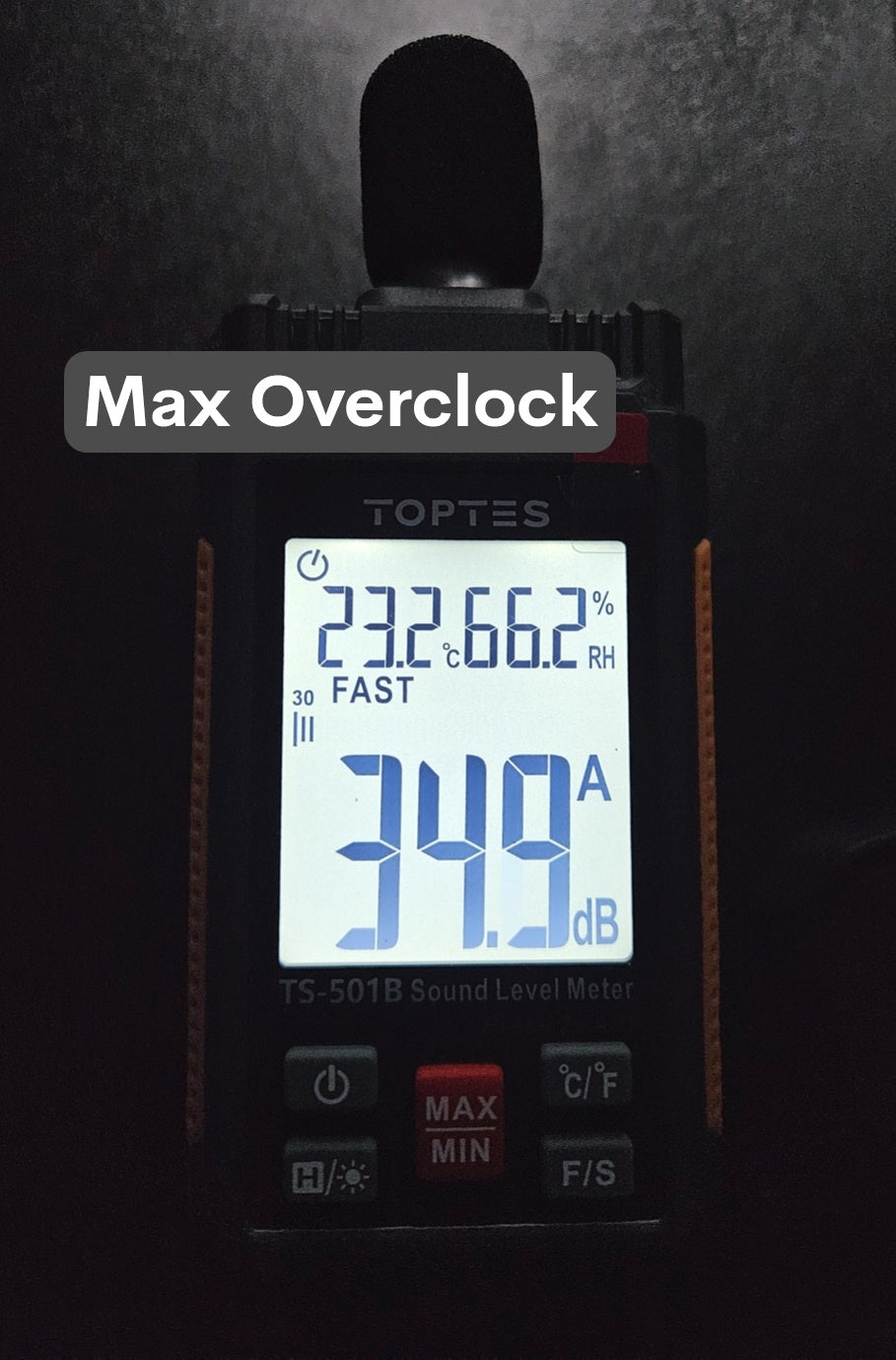

• Noise Level: ~35 dB at 1-meter distance

• System Stability: No throttling, errors, or overheating

📐 Product Dimensions

• Length: 124 mm

• Width: 65 mm

• Height: 76 mm

• Weight: ~268 g (fully assembled with Bitaxe Gamma board)



Slim, compact, and desk-friendly—engineered for efficient airflow and minimal footprint.
